Connector - SLA printed edge single 24 pin .156 inch

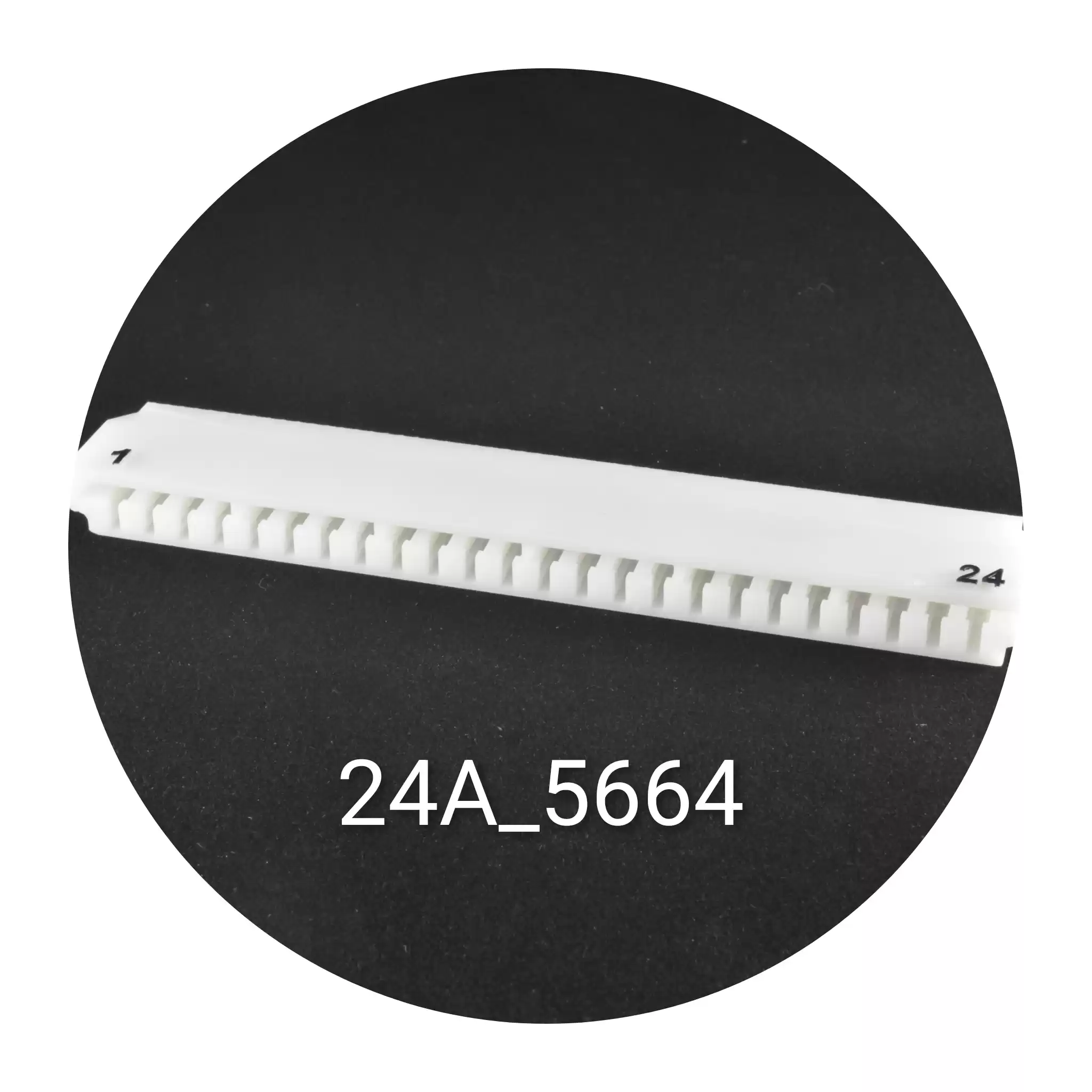

.156 inch (3.96mm) 24 pin, female, single-sided, edge connector, SLA printed housing kit

Each housing has polarizing ribs, like the OEM parts, to prevent them from being installed in the wrong location.

This kit is designed for use with Gottlieb System 1 (A1-J5), System 80 (A1-J2), System 80A (A1-J2) (1A14-J1) (2A14-J1) 3A14-J1) (4A14-J1), System 80B (A1-J2) pinball machines.

Kit Includes:

• (1) SLA printed .156 inch (3.96mm) 24 pin female edge connector housing
• (27) 08-52-0072 crimp terminals
• (6) Labels

Reference:

• 09-01-6241-GUD (SLA version)
• 09-01-6241 CONN CARDEDGE HSG 24POS .156 NAT
• MOLEX REF: 09-01-6241 24-Position Card Edge Connector Housing 0.156" (3.96mm)
• 08-52-0072 Crimp Terminals

Additional benefits

• Extremely detailed and precise dimensions, accurate to the original parts.

• Extra crimp terminal(s) (one for 04A to 08A, two for 09A to 15A and three for 17A to 24B)

• Pin hole in housing body to release terminal lock

• Raised numbers in contrasting color indicating the first and last contact number

• Manufactured from a high strength polymer rated for use up to 52 deg C

Treat yourself to replacement connectors to help you repair your games.  Another product from Pinball LEDs by DRAPL.
