62256 NVRAM Module
No More Batteries!

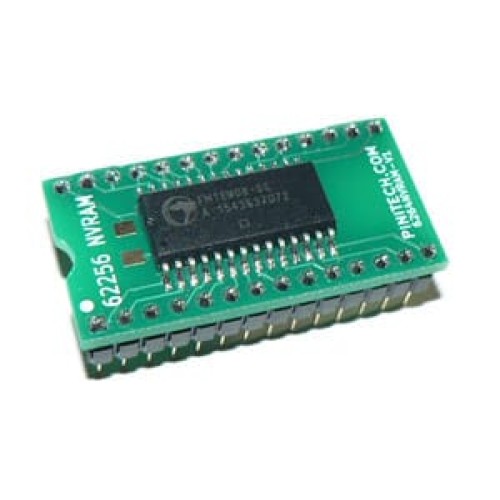

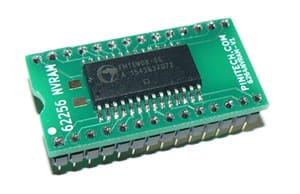

This is a premium quality nonvolatile RAM (NVRAM) replacement for the 62256 RAM used in pinball / arcade machines.
Replaces a 62256 or compatible pinout 32k x 8 SRAM. These modules use CYPRESS F-RAM nvram ICs rated at 151-year data retention & 100 trillion reads/writes. Module installs easily into any IC socket.
WHY REPLACE YOUR EXISTING RAM WITH NVRAM?
Batteries
leak. Even brand new batteries from major brands have leaked a year or
two later for no apparent reason and cause hundreds of dollars in
repairs or replacement of boards and components affected. Upgrading to
NVRAM will save you time, money and any future worry of battery damage.
It's one of the best mods you can do to your games!
NOTE ON BOARDS REQUIRING SOCKET INSTALLATIONSome
boards require desoldering the 62256 RAM currently on the board and
installation of an IC socket (all Williams pinball games). If you do not
have proper equipment or experience to perform the upgrade, please hire
a professional to upgrade your board. Any attempt to modify your board
is AT YOUR OWN RISK. See our article on an example of an NVRAM upgrade that requires soldering.
NVRAM is shipped in anti-static foam & anti-static bag. An IC socket is included.
See the COMPATIBILITY INFO below for game compatibility.
Batteries leak. Even brand new batteries from major brands have leaked a year or two later for no apparent reason and cause hundreds of dollars in repairs or replacement of boards and components affected. Upgrading to NVRAM will save you time, money and any future worry of battery damage. It's one of the best mods you can do to your games!
NOTE ON BOARDS REQUIRING SOCKET INSTALLATIONSome boards require desoldering the 62256 RAM currently on the board and installation of an IC socket (all Williams pinball games). If you do not have proper equipment or experience to perform the upgrade, please hire a professional to upgrade your board. Any attempt to modify your board is AT YOUR OWN RISK. See our article on an example of an NVRAM upgrade that requires soldering.
Unfortunately this product is not available for purchase via shopping cart at this time.
This may be due to one or more of the following reasons:
- Product is not available for immediate shipment and/or is built on-demand as time permits
- Product has low demand and is awaiting more waitlist signups for the next PCB order / batch assembly
- Product is out of stock due to material shortage
*NOTE: EACH MODULE INCLUDES A NEW 28-PIN IC SOCKET!
COMPATIBILITY INFO
For pinball machines, refer to this Pinball NVRAM Game List to
find what type of NVRAM you need for each game you'd like to upgrade.
This will also help identify what games are plug-and-play and which
require soldering for installation.Additionally, check out the
compatibility chart below for board diagrams showing the location of the
RAM on the board, difficulty of the installation & any other
usage/installation notes.
BOARDSET DIFFICULTY RAM
LOCATION NOTES SEGA WHITESTAR EASY
Plug-And-Play U212
(see picture) Plug-and-Play
on all Whitestar games that used a 62256 RAM and/or have their "JP1"
jumper (directly below the RAM chip on many of these boards) set to the
32k RAM setting.You can get by with a 6264 NVRAM Module on many of these games, but the 62256 NVRAM Module is also an option if you want to replace like-with-like on your game.
GAME LIST:
Apollo
13, Godzilla, Goldeneye, Independence Day, Lost In Space, South Park,
Space Jam, Star Wars Tilogy, Starship Troopers, The Lost World Jurassic
Park, The X Files, Twister, Viper Night Drivin' STERN WHITESTAR EASY
Plug-And-Play U212
(see picture) Plug-and-Play
on all Whitestar games that used a 62256 RAM and/or have their "JP1"
jumper (directly below the RAM chip on many of these boards) set to the
32k RAM setting.You can get by with a 6264 NVRAM Module on many of these games, but the 62256 NVRAM Module is also an option if you want to replace like-with-like on your game.
GAME LIST:
Austin
Powers, Elvis, Grand Prix, Harley Davidson, High Roller Casino,
Monopoly, NASCAR, NFL, Playboy, Ripley's Believe It Or Not, Roller
Coaster Tycoon, Sharkey's Shootout, Striker Xtreme, Terminator 3: Rise
of the Machines, The Lord of the Rings, The Simpsons Pinball Party, The
Sopranos WILLIAMS WPC HARD
Requires SolderingDelicate Traces
U8
(pictures below)WPC-89
Includes WPC-Alpha, WPC-Dot, WPC-Flip1, WPC-Flip2
WPC-S
WPC-95
NOT PLUG-AND-PLAY. Requires
removal of existing RAM & installation of a socket! Williams WPC
games did not have their RAM socketed from the factory. Unless someone
has replaced the RAM and installed a socket, you will need to remove the
existing RAM IC and install a 28-pin socket. Rated higher difficulty due to thin traces on Williams WPC MPUs. Additionally there may be a jumper change required.Note:
Games could use either a 62256 SRAM or 6264 SRAM. If your game is
currently using a 62256 SRAM at U8 no changes are needed. If your game
currently has a 6264 in it, you may want to consider just purchasing
the 6264 NVRAM Module to avoid having to make any jumper changes.
Jumper Settings:
62256 = remove R93 and install jumper W3
*Only needed if your existing ram IS NOT a 62256<
Real-time
clock will not function correctly on any games that utilized the clock
for Midnight Madness Mode or other special time-sensitive modes. Midnight
Madness Mode will not start at the correct time on Dirty Harry, Johnny
Mnemonic, WHO Dunnit, Theatre of Magic, Congo, Junk Yard or NBA
Fastbreak. In addition to this music on Creature From the Black Lagoon
based on different dates will be affected. Twilight Zone's clock on the
playfield will not show the correct time. There may be other games
affected in addition to those listed here. Basically these functions
will still work, but will not be based on the correct time since with
nvram installed the real-time clock does not get updated when the
machine is powered off.
GAME LIST:
Attack
From Mars, Black Rose, Bram Stoker's Dracula, Cactus Canyon, Cirqus
Voltaire, Congo, Corvette, Creature From The Black Lagoon, Demolition
Man, Dirty Harry, Doctor Who, Fish Tales, Funhouse, Gilligan's Island,
Harley Davidson, Hot Shot, Hurricane, Indiana Jones, Indy 500, Jack-Bot,
Johnny Mnemonic, Judge Dredd, Junk Yard, Medieval Madness, Monster
Bash, NBA Fastbreak, No Fear: Dangerous Sports, No Good Gofers, Party
Zone, Popeye Saves The Earth, Red & Ted's Roadshow, Safe Cracker,
Scared Stiff, Slugfest, Star Trek The Next Generation, Tales of the
Arabian Nights, Terminator 2 Judgement Day, The Addams Family, The
Champion Pub, The Flintstones, The Getaway: High Speed II, The Machine:
Bride Of Pin-Bot, The Shadow, Theatre of Magic, Ticket Tac Toe, Twilight
Zone, White Water, WHO Dunnit, World Cup Soccer
CHIP MARKINGS DIFFERENT?
Your
current RAM might not be labeled as a "62256" -- some RAM manufacturers
used different numbering on their RAM. The easiest thing to do is to
write down the numbers on the RAM IC (located via the pictures above)
and Google it to see if it's an 8K SRAM (6264) or 32K SRAM (62256). If
in doubt, please contact us with a picture of your RAM or the number on
the chip and we'll help you out.
COMPATIBILITY WITH OTHER DEVICES
This
memory may also work in other applications where a 62256 RAM is used,
but cannot be guaranteed to work in applications not listed & should
not replace memory in critical circuits without proper testing. Note
that the F-RAM chips latch each address on the falling edge of the /CE
(chip enable) line, so in the hardware being upgraded the /CE line must
be toggled for every read/write (not tied to GND). The chip enable
circuit can be verified via schematic, but the toggling of the chip
enable line on every read/write would need to be verified via logic
analyzer. If you find this nvram compatibile with other devices, please
let us know.
Note:
The underlying nvram chip / IC used in these modules is ~$15 per chip.
This is parts cost for the NVRAM chip itself BEFORE other material &
business costs of assembling. If your game can use 6264 NVRAM by
switching jumpers you can save a few bucks by going with the 6264 NVRAM
instead.
LIABILITY INFORMATION
This
product was designed ONLY for the purpose as stated in the product
description. Pinitech LLC cannot control conditions of installation or
use (ie. inadequate repairs of machines, improper installation,
aftermarket modifications, etc). End user agrees to assume any and all liablity of this product. In
no event shall Pinitech LLC be liable for any direct, indirect,
punitive, incidental, special consequential damages, to property or
life, whatsoever arising out of or connected with the use or misuse of
our products.
Pinball LEDS by DRAPL is only the reseller of this product and takes no liability for the in proper installation and use of product.
| BOARDSET | DIFFICULTY | RAM LOCATION | NOTES |
| SEGA WHITESTAR | EASY Plug-And-Play | U212 (see picture) | Plug-and-Play
on all Whitestar games that used a 62256 RAM and/or have their "JP1"
jumper (directly below the RAM chip on many of these boards) set to the
32k RAM setting. You can get by with a 6264 NVRAM Module on many of these games, but the 62256 NVRAM Module is also an option if you want to replace like-with-like on your game. |
| GAME LIST: Apollo 13, Godzilla, Goldeneye, Independence Day, Lost In Space, South Park, Space Jam, Star Wars Tilogy, Starship Troopers, The Lost World Jurassic Park, The X Files, Twister, Viper Night Drivin' | |||
| STERN WHITESTAR | EASY Plug-And-Play | U212 (see picture) | Plug-and-Play
on all Whitestar games that used a 62256 RAM and/or have their "JP1"
jumper (directly below the RAM chip on many of these boards) set to the
32k RAM setting. You can get by with a 6264 NVRAM Module on many of these games, but the 62256 NVRAM Module is also an option if you want to replace like-with-like on your game. |
| GAME LIST: Austin Powers, Elvis, Grand Prix, Harley Davidson, High Roller Casino, Monopoly, NASCAR, NFL, Playboy, Ripley's Believe It Or Not, Roller Coaster Tycoon, Sharkey's Shootout, Striker Xtreme, Terminator 3: Rise of the Machines, The Lord of the Rings, The Simpsons Pinball Party, The Sopranos | |||
| WILLIAMS WPC | HARD Requires Soldering Delicate Traces | U8 (pictures below) WPC-89 | NOT PLUG-AND-PLAY. Requires
removal of existing RAM & installation of a socket! Williams WPC
games did not have their RAM socketed from the factory. Unless someone
has replaced the RAM and installed a socket, you will need to remove the
existing RAM IC and install a 28-pin socket. Rated higher difficulty due to thin traces on Williams WPC MPUs. Additionally there may be a jumper change required. Note: Games could use either a 62256 SRAM or 6264 SRAM. If your game is currently using a 62256 SRAM at U8 no changes are needed. If your game currently has a 6264 in it, you may want to consider just purchasing the 6264 NVRAM Module to avoid having to make any jumper changes. Jumper Settings: Real-time clock will not function correctly on any games that utilized the clock for Midnight Madness Mode or other special time-sensitive modes. Midnight Madness Mode will not start at the correct time on Dirty Harry, Johnny Mnemonic, WHO Dunnit, Theatre of Magic, Congo, Junk Yard or NBA Fastbreak. In addition to this music on Creature From the Black Lagoon based on different dates will be affected. Twilight Zone's clock on the playfield will not show the correct time. There may be other games affected in addition to those listed here. Basically these functions will still work, but will not be based on the correct time since with nvram installed the real-time clock does not get updated when the machine is powered off. |
| GAME LIST: Attack From Mars, Black Rose, Bram Stoker's Dracula, Cactus Canyon, Cirqus Voltaire, Congo, Corvette, Creature From The Black Lagoon, Demolition Man, Dirty Harry, Doctor Who, Fish Tales, Funhouse, Gilligan's Island, Harley Davidson, Hot Shot, Hurricane, Indiana Jones, Indy 500, Jack-Bot, Johnny Mnemonic, Judge Dredd, Junk Yard, Medieval Madness, Monster Bash, NBA Fastbreak, No Fear: Dangerous Sports, No Good Gofers, Party Zone, Popeye Saves The Earth, Red & Ted's Roadshow, Safe Cracker, Scared Stiff, Slugfest, Star Trek The Next Generation, Tales of the Arabian Nights, Terminator 2 Judgement Day, The Addams Family, The Champion Pub, The Flintstones, The Getaway: High Speed II, The Machine: Bride Of Pin-Bot, The Shadow, Theatre of Magic, Ticket Tac Toe, Twilight Zone, White Water, WHO Dunnit, World Cup Soccer | |||
Your current RAM might not be labeled as a "62256" -- some RAM manufacturers used different numbering on their RAM. The easiest thing to do is to write down the numbers on the RAM IC (located via the pictures above) and Google it to see if it's an 8K SRAM (6264) or 32K SRAM (62256). If in doubt, please contact us with a picture of your RAM or the number on the chip and we'll help you out.
This memory may also work in other applications where a 62256 RAM is used, but cannot be guaranteed to work in applications not listed & should not replace memory in critical circuits without proper testing. Note that the F-RAM chips latch each address on the falling edge of the /CE (chip enable) line, so in the hardware being upgraded the /CE line must be toggled for every read/write (not tied to GND). The chip enable circuit can be verified via schematic, but the toggling of the chip enable line on every read/write would need to be verified via logic analyzer. If you find this nvram compatibile with other devices, please let us know.
Treat your game to NVRAM. Another product from Pinball LEDs by DRAPL.
62256 NVRAM Module Battery Eliminator
- Brand: DRAPL
- Product Code: 62256 NVRAM Module Battery Eliminator
- Availability: 1
-
$63.00
